Gecko Side

gallery/geko3

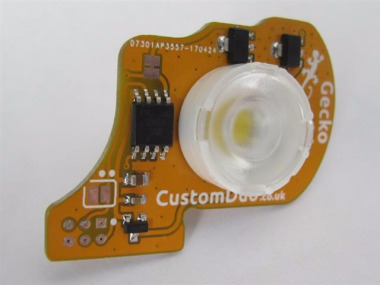

The Gecko Side v3 module features latest Cree xp-g3 LED, and provides a broad forward directional flood output, with 4 useful power settings providing over 300 lumens output.



Now available with new Cree XP-G3 s5 LEDs providing minimum of 172 lumen/watt @85degC and 187 lumen/watt @25degC. Light temperature 5000K (neutral white).







£30



Specification


  • Simple, push fit replacement for Petzl 5 to 14 LED arrays (or bi-pin bulbs)
  • 4 regulated power settings providing up to 310 lumens (see table below)
  • Latest high power Cree XP-G3 5000k s5 LED providing minimum 172 lumens / watt @ 350mA
  • Ideal upgrade for cavers, providing soft all round illumination, desirable for negotiating cave passage
  • Significantly brighter than the standard Duo 14 LED array**, and providing improved light quality and battery efficiency
  • Progressive dimming at end of battery charge; lamp will not just shut off when batteries cannot sustain output
  • No power drain when lamp is 'switched off' with batteries connected
  • 6.0 volt maximum input
  • Can be used with Gecko Spot module (discard reflector) or with original halogen bulb (retain reflector) ***







Setting

Flood LED

Output

(estimated)

Duration

(est.  using 2500mAh
eneloops)

1 (low)

50mA

24 lumens

50 hours

2 (med)

150mA

73 lumens

16 hours

3 (high)

350mA

172 lumens

7 hours

4 (turbo)

700mA

310 lumens

n/a*

* Thermal regulation on Turbo setting. This setting will typically operate for up to 1 minute max (from cold !), and for as little as a few seconds (from warm !) before thermal regulation will step power back to 350mA 'high' setting in order to protect LED from over temperature operation and damage



** Petzl Modu'led 14 (producing a distinctly 'blue' light) is rated at 67 lumens at around 350mA



*** When fitting with Gecko Spot module, discard original reflector. When fitting with original halogen bulb then it is necessary to retain reflector. If replacing a 5 LED array or bi-pin bulb then the original reflector will require modification. 14 LED reflector does not require modification
